New Zealand (English)Model: ETM-OF
Contato auxiliar
Solicitar informações
Língua
Combines the functionality of auxiliary contact (OF) and alarm contact (SD) in a single unit
Typical Applications：
Used in systems that require both real-time status feedback and fault alarming.
| Technical Data | |||
| Model | ETM-FB | ||
| Standard | IEC/EN 60947-5-1 | ||
| Number of contacts | 2NO+2NC | ||
| Rated voltage (Ue) | AC-13 | 230~400 VAC | |
| AC-15 | 230~400 VAC | ||
| DC-12 | 24~110 VDC | ||
| Operating current (le) | AC-13 | 3A@230V, 2A@400V | |
| AC-15 | 2A@230V, 1A@400V | ||
| DC-12 | 0.5A≤110VDC | ||
| Operating frequency | 50/60Hz | ||
| Rated insulation voltage (Ui) | 400V | ||
| Rated impulse withstand voltage (Uimp) | 2.5kV | ||
| Pollution degree | 2 | ||
| Terminal type | Lug type | ||
| Terminal capacity | Up to 2.5mm² | ||
| Tightening torque | 0.8 N.m | ||
| Ambient temperature | -5℃~+40℃ | ||
| Storage temperature | -25℃~+70℃ | ||

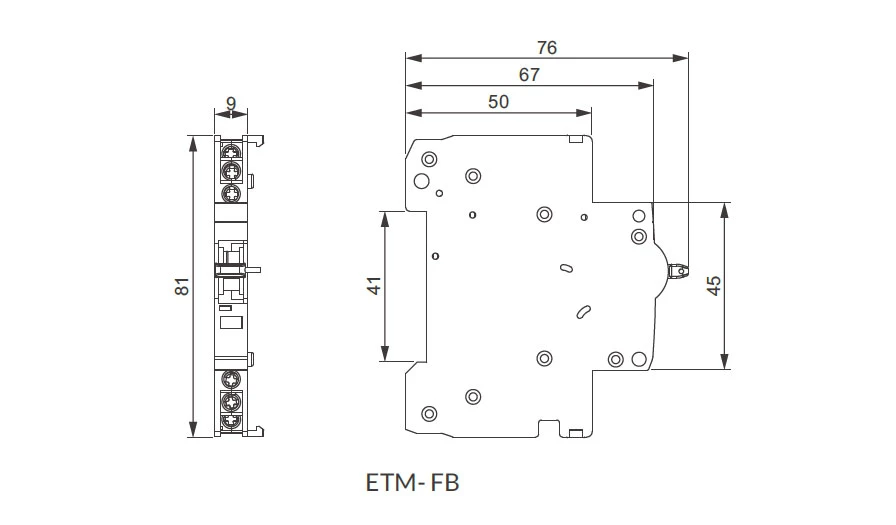

| Product width | 9mm | ||
| Compatible product | T Series MCB, RCBO | ||
