Disjuntor miniatura ETM1-63X | Disjuntor miniatura série T de 6 kA

Disjuntor miniatura de 6 kA

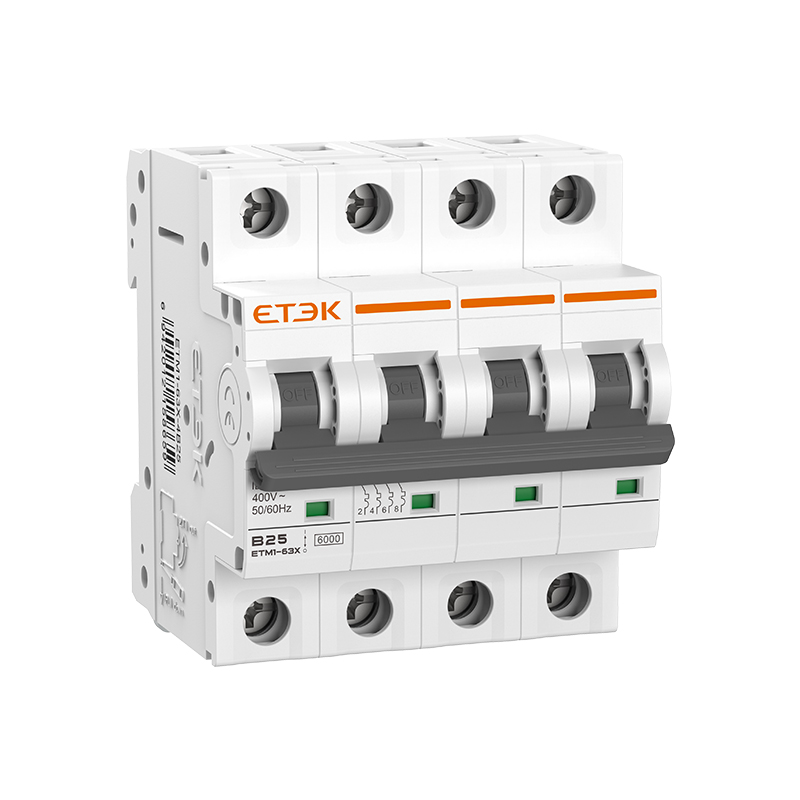

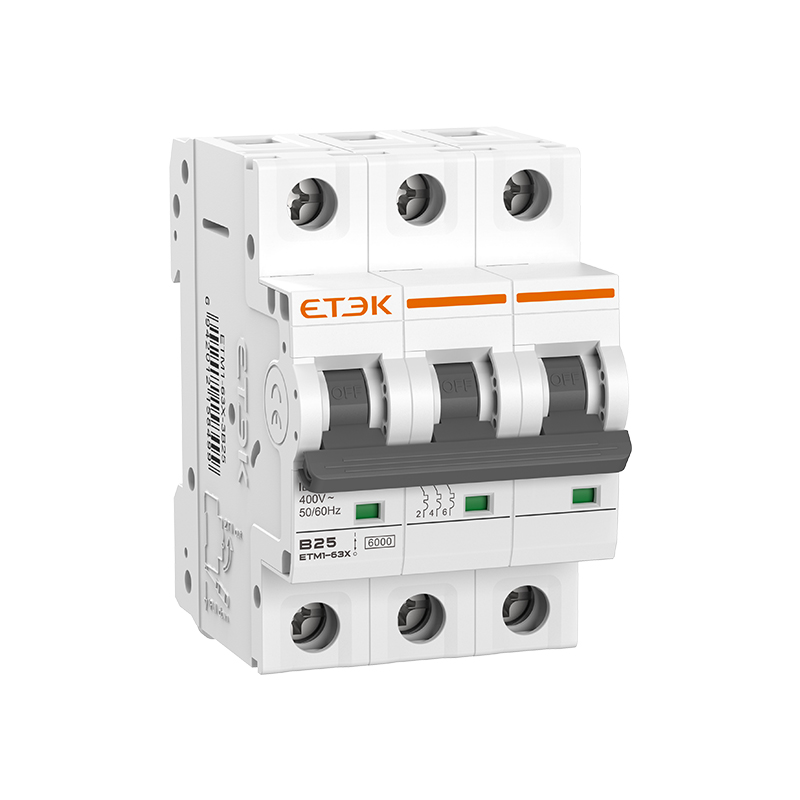

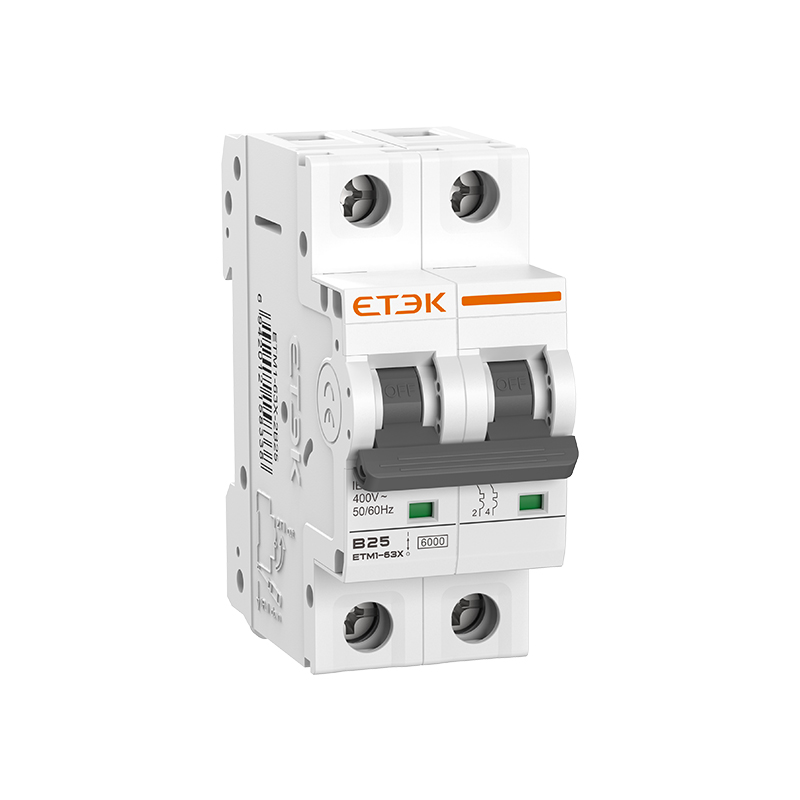

ETM1-63X Series Miniature Circuit Breaker is specifically designed for terminal power distribution protection in commercial office buildings, residential premises, and general industrial applications.

This product incorporates finger-safe combination terminals and provides contact open/close status indication, significantly enhancing operational safety. Additionally, various modular accessories can be configured to meet diverse application needs.

Breaking capacity: 6kA
Current ratings: 1A to 63A
Curves: B, C, D
Pin type connection

Pergunte AGORA

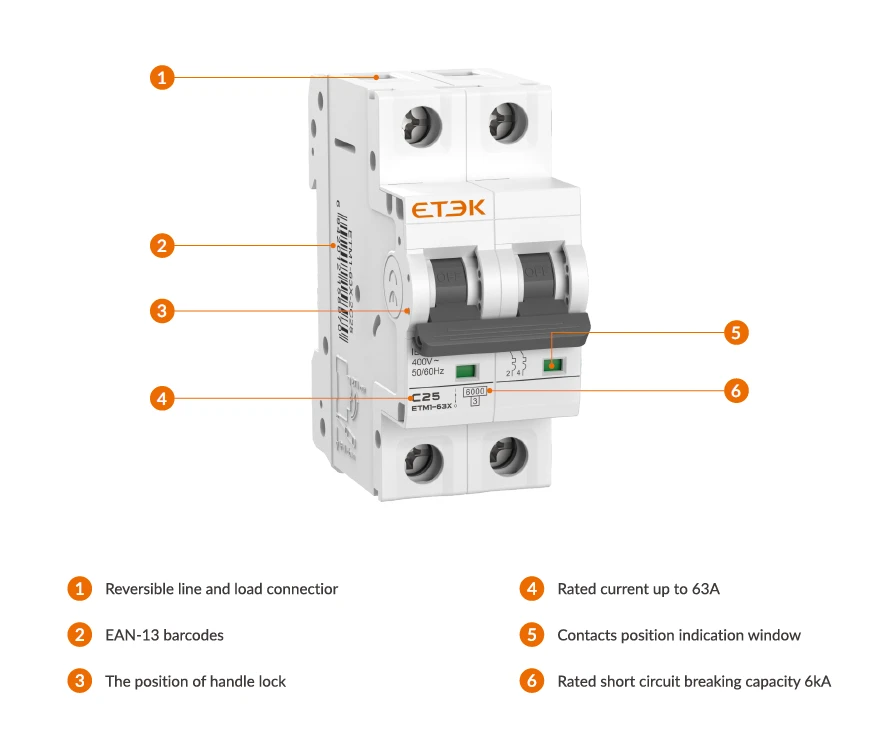

Características do produto

IP20 protection:
Finger protected connection terminals.
Modular accessory expansion:
Suitable for the quick and easy mounting of additional components, such as auxiliary switches and fault signal contacts.
EAN code:
The shell comes with pad printed EAN code.
Standard:
IEC 60898-1: Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installations - Part 1.
Multiple termination:
Both incoming and outgoing terminals are suitable for: normal cable, pin type busbars.
Contact position indication:
Reliable recognition of the switching status through red/green position indicating device.
RoHS compliant:
ETEK uses environmentally friendly state-of-the-art housing material. With the latest generation of halogen free thermoplastics for MCBs, it is now possible to recycle the MCBs completely which reduces environmental pollution. T Series entire range of circuit protection devices conform to RoHS Standards.

Dicas sobre o produto

Wiring Diagram

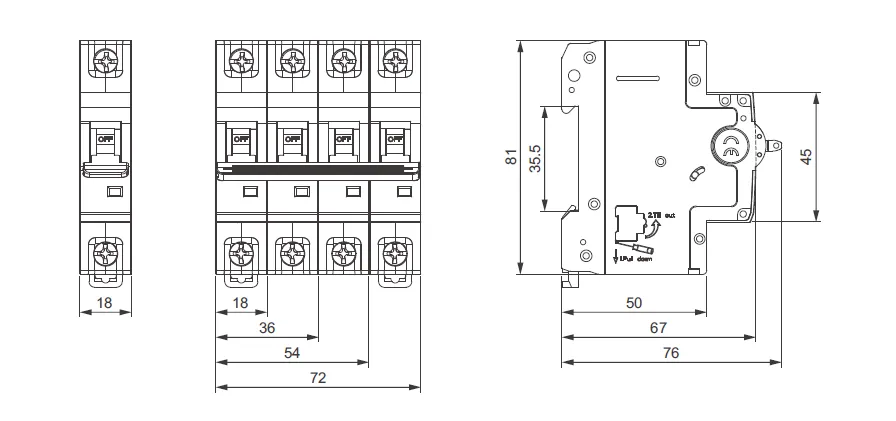

Dimension (mm)

Dados técnicos

General data
Protection	Overcurrent and short circuit
Type of trip	Thermal-magnetic
No. of poles	1P, 2P, 3P, 4P
Rated operational voltage (Ue)	1P: 2110/230V, 120/240V, 230/400V, 240/415V 2P,3P,4P: 230/400V, 240/415V, 400/415V
Rated current (In)	1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63A
Rated frequency	50/60Hz
Rated insulation voltage (Ui)	415V
Rated impulse withstand voltage (Uimp) (1.2/50μs)	6kV
Dielectric test voltage	2kV (50/60Hz,1 min.)
Fire resistance (glow-wire test)	960±15°C (Enclosure); 650±10°C (Handle)
Pollution degree	2

Data acc. to IEC/EN 60898-1
Rated short-circuit capacity (Icn)	6kA
Rated service short-circuit breaking capacity (Ics)	6kA
Energy limiting class	3
Thermal tripping characteristics	1.13×In No tripping within an hour; 1.45×In Tripping within an hour
Instantaneous tripping characteristics	B: 3In-5In; C: 5In-10In; D: 10In-20In

Mechanical data
Electrical life	4,000 Cycles
Mechanical life	20,000 Cycles
Contact position indication	green OFF / red ON
Protection degree	IP20
Reference temperature	30°C
Operating ambient temperature (with daily average≤35°C)	-25°C ~ +55°C
Storage temperature	-30°C ~ +70°C

Installation
Terminal connection type	Cable/ Pin-type
Terminal block	Screw press-connected
Max. terminal size for cable	16mm² flexible/ 25mm² rigid
Max. tightening torque	2.5N.m
Mounting type	Mounting on 35mm DIN rail
Incoming method	Bi-Directional

Auxiliary for remote tripping or signaling
Auxiliary Contact	Yes
Auxiliary & Alarm Contact	Yes
Shunt Release	Yes
Shunt Release & Auxiliary Contact	Yes
Voltage Loss Release	Yes
Over-voltage Release	Yes
Undervoltage Release	Yes
Over-undervoltage Release	Yes
Mechanical Interlock	Yes
