Os contatores CA são usados para conectar/desconectar a linha e, frequentemente, para controlar motores e outros equipamentos. Eles controlam grandes correntes com pequenas correntes e desempenham um papel importante na proteção contra sobrecarga quando trabalham em conjunto com o relé térmico.
| Aplicativo | abertura e fechamento remotos de circuitos |
| Proteção do circuito contra sobrecarga ao montar com relé de sobrecarga térmica | |
| partida e controle frequentes do contator CA | |
| Valor elétrico | AC50/60Hz, 690V, até 95A |
| Categoria de utilização | AC-3, AC-4 |
| Altitude | ≤2000m |
| Temperatura ambiente | -5℃~+40℃ |
| Categoria de montagem | Ⅲ |
| Condições de montagem | A inclinação entre o plano de montagem e o plano vertical não deve exceder ±5°. |
| Padrão | CEI/EN 60947-4-1. CEI/EN 60947-5-1. |
| Operação da bobina CA | ||||||||||||||||
| Volts (VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | |
| Código | 50Hz | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | - | S5 | Y5 |
| 60Hz | B6 | - | D6 | E6 | F6 | G6 | M6 | 0 | U6 | Q6 | 0 | R6 | T6 | - | - | |
| 50/60Hz | B7 | - | D7 | E7 | F7 | - | M7 | - | Q7 | R7 | - | - | - | |||
| Operação da bobina CC | ||||||||||||||||
| Volts (VDC) | 12 | 24 | 36 | 48 | 110 | 220 | ||||||||||
| Código | JD | BD | CD | DE | FD | MD | ||||||||||
| EK | C | 1 | 09 | 11 | Z |
Código da empresa | Contator | Sequência de projeto NO. | Especificação básica, expressa com a corrente operacional nominal (380V/400V, AC3) | Número de contatos 10: 3 contatos principais NA + 1 contato auxiliar NA (9A, 12A, 18A, 25A, 32A) 01: 3 contatos principais NA + 1 contato auxiliar NF (9A, 12A, 18A, 25A, 32A) 11: 3 contatos principais NA + 1 contato auxiliar NA e 1 contato auxiliar NF (9A, 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A) 04: 4 contatos principais NA (9A, 12A, 25A, 40A, 50A, 65A, 80A, 95A) 08: Contatos principais 2N/A e 2N/F (9A, 12A, 25A, 40A, 50A, 65A, 80A, 95A) | Z: Operação CC Em branco: Operação CA |
| Padrão | IEC/EN60947-4-1 IEC/EN60947-5-1 | ||||||||||
| Modelo nº. | EKC1-09 | EKC1-12 | EKC1-18 | EKC1-25 | EKC1-32 | EKC1-40 | EKC1-50 | EKC1-65 | EKC1-80 | EKC1-95 | |
| Corrente nominal de aquecimento convencional | Ith(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 125 |
| Tensão nominal Ui(V) | Ui(V) | 690 | |||||||||
| Corrente nominal de operação Ue=380/415V | AC-3 Ie(A) | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC-4 Ie(A) | 3,5 | 5 | 7,7 | 8,5 | 12 | 18,5 | 24 | 28 | 37 | 44 | |
| Controle de potência trifásico gaiola Motor AC-3 | 220/240V kW | 2.2 | 3 | 4 | 5,5 | 7,5 | 11 | 15 | 18,5 | 22 | 25 |
| 380/415V kW | 4 | 5,5 | 7,5 | 11 | 15 | 18,5 | 22 | 30 | 37 | 45 | |
| 660/690V kW | 5,5 | 7,5 | 10 | 15 | 18,5 | 30 | 33 | 37 | 45 | 45 | |

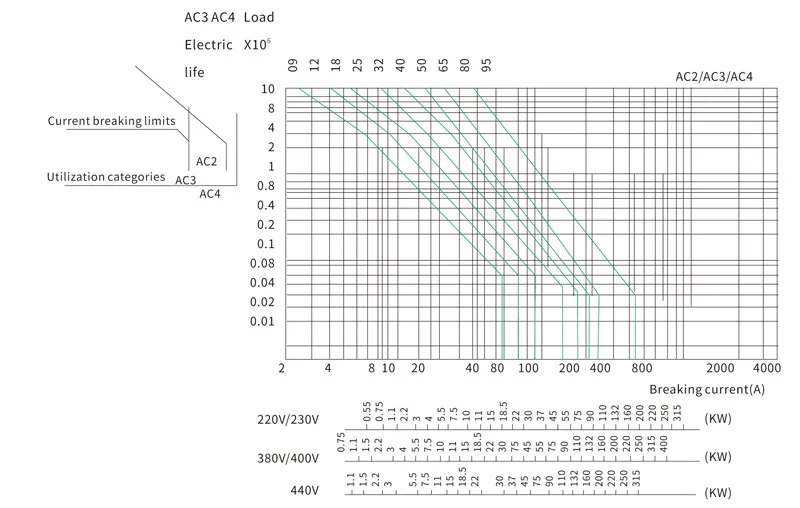

| AC-3 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 600 | 600 | 600 | 600 | |
| Vida elétrica (operações x103) | AC-4 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 100 | 100 |
| Vida útil mecânica (10⁶ operações) | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 6 | 6 | |
| Fusível correspondente | Tamanho | RT16-00 | |||||||||
| UM | 20 | 20 | 32 | 40 | 50 | 63 | 80 | 80 | 100 | 125 | |
| Circuito principal | 3P ou 4P | ||||||||||
| Circuito auxiliar Cat.:AC-15, Ue=415V Ie=0,95A Ith=10A | 1NA / 1NF / 1NA + 1NF | ||||||||||
| Modelo | Seção transversal do cabo (Cu) | tamanho do parafuso | Torque de aperto (Nm) | |||
| Número de peças: | Cabo flexível com conector prensado a frio (mm2) | Cabo flexível sem conector prensado a frio (mm²) | Cabo inflexível (mm2) | |||
| EKC1-09 | 1~2 | 2,5 | 4 | 4 | M3.5 | 0,8 |
| EKC1-12 | 1~2 | 2,5 | 4 | 4 | M3.5 | 0,8 |
| EKC1-18 | 1~2 | 4 | 6 | 6 | M3.5 | 0,8 |
| EKC1-25 | 1 | 4 | 10 | 6 | M4 | 1.2 |
| 2 | 4 | 6 | 6 | M4 | 1.2 | |
| EKC1-32 | 1 | 4 | 10 | 6 | M4 | 1.2 |
| 2 | 4 | 6 | 6 | M4 | 1.2 | |
| EKC1-40 | 1 | 10 | 16 | 10 | M4 | 3,5 |
| 2 | 10 | 10 | 10 | M8 | 3,5 | |
| EKC1-50 | 1 | 16 | 25 | 25 | M8 | 3,5 |
| 2 | 16 | 16 | - | M8 | 3,5 | |
| EKC1-65 | 1 | 16 | 25 | 25 | M8 | 3,5 |
| 2 | 16 | 16 | - | M8 | 3,5 | |
| EKC1-80 | 1 | 50 | 50 | 50 | M8 | 3,5 |
| 2 | 25 | 35 | - | M10 | 4 | |
| EKC1-95 | 1 | 50 | 50 | 50 | M10 | 4 |
| 2 | 25 | 35 | - | M10 | 4 | |
| EKC1-09~32 | ||||||||||
 | ||||||||||
| EKC1-40~95 | ||||||||||
 | ||||||||||
| EKC1-09Z~32Z | ||||||||||
 | ||||||||||
| EKC1-40Z~95Z | ||||||||||
 |
| Um máximo | B máx. | C máx. | D máx. | E máx. | e | b | Φ | L | P | S | |
| EKC1-09(Z)~12(Z) | 47 | 76 | 82(116) | 125,5 (160,5) | 140,5 (174,5) | 34/35 | 50/60 | 4,5 | 60(95) | 10,5 | 8.6 |
| EKC1-18(Z) | 47 | 76 | 87(122) | 120,5 (154,5) | 145,5 (180,5) | 34/35 | 50/60 | 4,5 | 61(96) | 11.3 | 10.4 |
| EKC1-25(Z) | 57 | 86 | 95(131) | 133,5 (169,5) | 153,5 (189,5) | 40 | 48 | 4,5 | 70(107) | 13.2 | 11.7 |
| EKC1-32(Z) | 57 | 86 | 100(138) | 138,5 (176,5) | 158,5 (196,5) | 40 | 48 | 4,5 | 71,6(120) | 14,5 | 13 |
| EKC1-4011(Z)~6511(Z) | 77 | 129 | 116(173) | 154,5 (211,5) | 174,5 (231,5) | 40 | 100/110 | 6,5 | 78(135) | 20 | 8.6 |
| EKC1-4004/4008(Z) ~6504/6508(Z) | 84 | 129 | 116(173) | 154,5 (211,5) | 174,5 (231,5) | 40 | 100/110 | 6,5 | 78(135) | 20 | 8.6 |
| EKC1-8011(Z)~9511(Z) | 87 | 129 | 127(183) | 165,5 (226,5) | 185,5 (246,5) | 40 | 100/110 | 6,5 | 83(140) | 23,5 | 12 |
| EKC1-8004/8008(Z) ~9504/9508(Z) | 96 | 129 | 127(183) | 160,5 (221,5) | 180,5 (241,5) | 40 | 100/110 | 6,5 | 83(140) | 23,5 | 12 |
Observação:
1. L: no circuito principal, a distância entre os terminais e a placa;
2. P: no circuito principal, a distância entre duas fases;
3. S: no circuito principal, a largura da placa de contato
| Reference No. | Specification |
| AC Coil | |
| EKC1-0910-24 | Contactor 4KW AC3 9A 3P+1NO Coil 24VAC |
| EKC1-0910-42 | Contactor 4KW AC3 9A 3P+1NO Coil 42VAC |
| EKC1-0910-48 | Contactor 4KW AC3 9A 3P+1NO Coil 48VAC |
| EKC1-0910-110 | Contactor 4KW AC3 9A 3P+1NO Coil 110VAC |
| EKC1-0910-120 | Contactor 4KW AC3 9A 3P+1NO Coil 120VAC |
| EKC1-0910-220 | Contactor 4KW AC3 9A 3P+1NO Coil 220VAC |
| EKC1-0910-230 | Contactor 4KW AC3 9A 3P+1NO Coil 230VAC |
| EKC1-0910-240 | Contactor 4KW AC3 9A 3P+1NO Coil 240VAC |
| EKC1-0910-380 | Contactor 4KW AC3 9A 3P+1NO Coil 380VAC |
| EKC1-0910-415 | Contactor 4KW AC3 9A 3P+1NO Coil 415VAC |
| EKC1-0901-24 | Contactor 4KW AC3 9A 3P+1NC Coil 24VAC |
| EKC1-0901-42 | Contactor 4KW AC3 9A 3P+1NC Coil 42VAC |
| EKC1-0901-48 | Contactor 4KW AC3 9A 3P+1NC Coil 48VAC |
| EKC1-0901-110 | Contactor 4KW AC3 9A 3P+1NC Coil 110VAC |
| EKC1-0901-120 | Contactor 4KW AC3 9A 3P+1NC Coil 120VAC |
| EKC1-0901-220 | Contactor 4KW AC3 9A 3P+1NC Coil 220VAC |
| EKC1-0901-230 | Contactor 4KW AC3 9A 3P+1NC Coil 230VAC |
| EKC1-0901-240 | Contactor 4KW AC3 9A 3P+1NC Coil 240VAC |
| EKC1-0901-380 | Contactor 4KW AC3 9A 3P+1NC Coil 380VAC |
| EKC1-0901-415 | Contactor 4KW AC3 9A 3P+1NC Coil 415VAC |
| EKC1-0911-24 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 24VAC |
| EKC1-0911-42 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 42VAC |
| EKC1-0911-48 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 48VAC |
| EKC1-0911-110 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 110VAC |
| EKC1-0911-120 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 120VAC |
| EKC1-0911-220 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 220VAC |
| EKC1-0911-230 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 230VAC |
| EKC1-0911-240 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 240VAC |
| EKC1-0911-380 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 380VAC |
| EKC1-0911-415 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 415VAC |
| EKC1-1210-24 | Contactor 5.5KW AC3 12A 3P+1NO Coil 24VAC |
| EKC1-1210-42 | Contactor 5.5KW AC3 12A 3P+1NO Coil 42VAC |
| EKC1-1210-48 | Contactor 5.5KW AC3 12A 3P+1NO Coil 48VAC |
| EKC1-1210-110 | Contactor 5.5KW AC3 12A 3P+1NO Coil 110VAC |
| EKC1-1210-120 | Contactor 5.5KW AC3 12A 3P+1NO Coil 120VAC |
| EKC1-1210-220 | Contactor 5.5KW AC3 12A 3P+1NO Coil 220VAC |
| EKC1-1210-230 | Contactor 5.5KW AC3 12A 3P+1NO Coil 230VAC |
| EKC1-1210-240 | Contactor 5.5KW AC3 12A 3P+1NO Coil 240VAC |
| EKC1-1210-380 | Contactor 5.5KW AC3 12A 3P+1NO Coil 380VAC |
| EKC1-1210-415 | Contactor 5.5KW AC3 12A 3P+1NO Coil 415VAC |
| EKC1-1201-24 | Contactor 5.5KW AC3 12A 3P+1NC Coil 24VAC |
| EKC1-1201-42 | Contactor 5.5KW AC3 12A 3P+1NC Coil 42VAC |
| EKC1-1201-48 | Contactor 5.5KW AC3 12A 3P+1NC Coil 48VAC |
| EKC1-1201-110 | Contactor 5.5KW AC3 12A 3P+1NC Coil 110VAC |
| EKC1-1201-120 | Contactor 5.5KW AC3 12A 3P+1NC Coil 120VAC |
| EKC1-1201-220 | Contactor 5.5KW AC3 12A 3P+1NC Coil 220VAC |
| EKC1-1201-230 | Contactor 5.5KW AC3 12A 3P+1NC Coil 230VAC |
| EKC1-1201-240 | Contactor 5.5KW AC3 12A 3P+1NC Coil 240VAC |
| EKC1-1201-380 | Contactor 5.5KW AC3 12A 3P+1NC Coil 380VAC |
| EKC1-1201-415 | Contactor 5.5KW AC3 12A 3P+1NC Coil 415VAC |
| EKC1-1211-24 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 24VAC |
| EKC1-1211-42 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 42VAC |
| EKC1-1211-48 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 48VAC |
| EKC1-1211-110 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 110VAC |
| EKC1-1211-120 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 120VAC |
| EKC1-1211-220 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 220VAC |
| EKC1-1211-230 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 230VAC |
| EKC1-1211-240 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 240VAC |
| EKC1-1211-380 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 380VAC |
| EKC1-1211-415 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 415VAC |
| EKC1-1810-24 | Contactor 7.5KW AC3 18A 3P+1NO Coil 24VAC |
| EKC1-1810-42 | Contactor 7.5KW AC3 18A 3P+1NO Coil 42VAC |
| EKC1-1810-48 | Contactor 7.5KW AC3 18A 3P+1NO Coil 48VAC |
| EKC1-1810-110 | Contactor 7.5KW AC3 18A 3P+1NO Coil 110VAC |
| EKC1-1810-120 | Contactor 7.5KW AC3 18A 3P+1NO Coil 120VAC |
| EKC1-1810-220 | Contactor 7.5KW AC3 18A 3P+1NO Coil 220VAC |
| EKC1-1810-230 | Contactor 7.5KW AC3 18A 3P+1NO Coil 230VAC |
| EKC1-1810-240 | Contactor 7.5KW AC3 18A 3P+1NO Coil 240VAC |
| EKC1-1810-380 | Contactor 7.5KW AC3 18A 3P+1NO Coil 380VAC |
| EKC1-1810-415 | Contactor 7.5KW AC3 18A 3P+1NO Coil 415VAC |
| EKC1-1801-24 | Contactor 7.5KW AC3 18A 3P+1NC Coil 24VAC |
| EKC1-1801-42 | Contactor 7.5KW AC3 18A 3P+1NC Coil 42VAC |
| EKC1-1801-48 | Contactor 7.5KW AC3 18A 3P+1NC Coil 48VAC |
| EKC1-1801-110 | Contactor 7.5KW AC3 18A 3P+1NC Coil 110VAC |
| EKC1-1801-120 | Contactor 7.5KW AC3 18A 3P+1NC Coil 120VAC |
| EKC1-1801-220 | Contactor 7.5KW AC3 18A 3P+1NC Coil 220VAC |
| EKC1-1801-230 | Contactor 7.5KW AC3 18A 3P+1NC Coil 230VAC |
| EKC1-1801-240 | Contactor 7.5KW AC3 18A 3P+1NC Coil 240VAC |
| EKC1-1801-380 | Contactor 7.5KW AC3 18A 3P+1NC Coil 380VAC |
| EKC1-1801-415 | Contactor 7.5KW AC3 18A 3P+1NC Coil 415VAC |
| EKC1-1811-24 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 24VAC |
| EKC1-1811-42 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 42VAC |
| EKC1-1811-48 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 48VAC |
| EKC1-1811-110 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 110VAC |
| EKC1-1811-120 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 120VAC |
| EKC1-1811-220 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 220VAC |
| EKC1-1811-230 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 230VAC |
| EKC1-1811-240 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 240VAC |
| EKC1-1811-380 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 380VAC |
| EKC1-1811-415 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 415VAC |
| EKC1-2510-24 | Contactor 11KW AC3 25A 3P+1NO Coil 24VAC |
| EKC1-2510-42 | Contactor 11KW AC3 25A 3P+1NO Coil 42VAC |
| EKC1-2510-48 | Contactor 11KW AC3 25A 3P+1NO Coil 48VAC |
| EKC1-2510-110 | Contactor 11KW AC3 25A 3P+1NO Coil 110VAC |
| EKC1-2510-120 | Contactor 11KW AC3 25A 3P+1NO Coil 120VAC |
| EKC1-2510-220 | Contactor 11KW AC3 25A 3P+1NO Coil 220VAC |
| EKC1-2510-230 | Contactor 11KW AC3 25A 3P+1NO Coil 230VAC |
| EKC1-2510-240 | Contactor 11KW AC3 25A 3P+1NO Coil 240VAC |
| EKC1-2510-380 | Contactor 11KW AC3 25A 3P+1NO Coil 380VAC |
| EKC1-2510-415 | Contactor 11KW AC3 25A 3P+1NO Coil 415VAC |
| EKC1-2501-24 | Contactor 11KW AC3 25A 3P+1NC Coil 24VAC |
| EKC1-2501-42 | Contactor 11KW AC3 25A 3P+1NC Coil 42VAC |
| EKC1-2501-48 | Contactor 11KW AC3 25A 3P+1NC Coil 48VAC |
| EKC1-2501-110 | Contactor 11KW AC3 25A 3P+1NC Coil 110VAC |
| EKC1-2501-120 | Contactor 11KW AC3 25A 3P+1NC Coil 120VAC |
| EKC1-2501-220 | Contactor 11KW AC3 25A 3P+1NC Coil 220VAC |
| EKC1-2501-230 | Contactor 11KW AC3 25A 3P+1NC Coil 230VAC |
| EKC1-2501-240 | Contactor 11KW AC3 25A 3P+1NC Coil 240VAC |
| EKC1-2501-380 | Contactor 11KW AC3 25A 3P+1NC Coil 380VAC |
| EKC1-2501-415 | Contactor 11KW AC3 25A 3P+1NC Coil 415VAC |
| EKC1-2511-24 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 24VAC |
| EKC1-2511-42 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 42VAC |
| EKC1-2511-48 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 48VAC |
| EKC1-2511-110 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 110VAC |
| EKC1-2511-120 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 120VAC |
| EKC1-2511-220 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 220VAC |
| EKC1-2511-230 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 230VAC |
| EKC1-2511-240 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 240VAC |
| EKC1-2511-380 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 380VAC |
| EKC1-2511-415 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 415VAC |
| EKC1-3210-24 | Contactor 15KW AC3 32A 3P+1NO Coil 24VAC |
| EKC1-3210-42 | Contactor 15KW AC3 32A 3P+1NO Coil 42VAC |
| EKC1-3210-48 | Contactor 15KW AC3 32A 3P+1NO Coil 48VAC |
| EKC1-3210-110 | Contactor 15KW AC3 32A 3P+1NO Coil 110VAC |
| EKC1-3210-120 | Contactor 15KW AC3 32A 3P+1NO Coil 120VAC |
| EKC1-3210-220 | Contactor 15KW AC3 32A 3P+1NO Coil 220VAC |
| EKC1-3210-230 | Contactor 15KW AC3 32A 3P+1NO Coil 230VAC |
| EKC1-3210-240 | Contactor 15KW AC3 32A 3P+1NO Coil 240VAC |
| EKC1-3210-380 | Contactor 15KW AC3 32A 3P+1NO Coil 380VAC |
| EKC1-3210-415 | Contactor 15KW AC3 32A 3P+1NO Coil 415VAC |
| EKC1-3201-24 | Contactor 15KW AC3 32A 3P+1NC Coil 24VAC |
| EKC1-3201-42 | Contactor 15KW AC3 32A 3P+1NC Coil 42VAC |
| EKC1-3201-48 | Contactor 15KW AC3 32A 3P+1NC Coil 48VAC |
| EKC1-3201-110 | Contactor 15KW AC3 32A 3P+1NC Coil 110VAC |
| EKC1-3201-120 | Contactor 15KW AC3 32A 3P+1NC Coil 120VAC |
| EKC1-3201-220 | Contactor 15KW AC3 32A 3P+1NC Coil 220VAC |
| EKC1-3201-230 | Contactor 15KW AC3 32A 3P+1NC Coil 230VAC |
| EKC1-3201-240 | Contactor 15KW AC3 32A 3P+1NC Coil 240VAC |
| EKC1-3201-380 | Contactor 15KW AC3 32A 3P+1NC Coil 380VAC |
| EKC1-3201-415 | Contactor 15KW AC3 32A 3P+1NC Coil 415VAC |
| EKC1-3211-24 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 24VAC |
| EKC1-3211-42 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 42VAC |
| EKC1-3211-48 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 48VAC |
| EKC1-3211-110 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 110VAC |
| EKC1-3211-120 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 120VAC |
| EKC1-3211-220 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 220VAC |
| EKC1-3211-230 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 230VAC |
| EKC1-3211-240 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 240VAC |
| EKC1-3211-380 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 380VAC |
| EKC1-3211-415 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 415VAC |
| EKC1-4011-24 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 24VAC |
| EKC1-4011-42 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 42VAC |
| EKC1-4011-48 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 48VAC |
| EKC1-4011-110 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 110VAC |
| EKC1-4011-120 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 120VAC |
| EKC1-4011-220 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 220VAC |
| EKC1-4011-230 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 230VAC |
| EKC1-4011-240 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 240VAC |
| EKC1-4011-380 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 380VAC |
| EKC1-4011-415 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 415VAC |
| EKC1-5011-24 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VAC |
| EKC1-5011-42 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 42VAC |
| EKC1-5011-48 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VAC |
| EKC1-5011-110 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VAC |
| EKC1-5011-120 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VAC |
| EKC1-5011-220 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VAC |
| EKC1-5011-230 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 230VAC |
| EKC1-5011-240 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 240VAC |
| EKC1-5011-380 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 380VAC |
| EKC1-5011-415 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 415VAC |
| EKC1-6511-24 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VAC |
| EKC1-6511-42 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 42VAC |
| EKC1-6511-48 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VAC |
| EKC1-6511-110 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VAC |
| EKC1-6511-120 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VAC |
| EKC1-6511-220 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VAC |
| EKC1-6511-230 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 230VAC |
| EKC1-6511-240 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 240VAC |
| EKC1-6511-380 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 380VAC |
| EKC1-6511-415 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 415VAC |
| EKC1-8011-24 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VAC |
| EKC1-8011-42 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 42VAC |
| EKC1-8011-48 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VAC |
| EKC1-8011-110 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VAC |
| EKC1-8011-120 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VAC |
| EKC1-8011-220 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VAC |
| EKC1-8011-230 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 230VAC |
| EKC1-8011-240 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 240VAC |
| EKC1-8011-380 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 380VAC |
| EKC1-8011-415 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 415VAC |
| EKC1-9511-24 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VAC |
| EKC1-9511-42 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 42VAC |
| EKC1-9511-48 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VAC |
| EKC1-9511-110 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VAC |
| EKC1-9511-120 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VAC |
| EKC1-9511-220 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VAC |
| EKC1-9511-230 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 230VAC |
| EKC1-9511-240 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 240VAC |
| EKC1-9511-380 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 380VAC |
| EKC1-9511-415 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 415VAC |
| EKC1-0904-24 | Contactor 4KW AC3 9A 4P 4NO Coil 24VAC |
| EKC1-0904-42 | Contactor 4KW AC3 9A 4P 4NO Coil 42VAC |
| EKC1-0904-48 | Contactor 4KW AC3 9A 4P 4NO Coil 48VAC |
| EKC1-0904-110 | Contactor 4KW AC3 9A 4P 4NO Coil 110VAC |
| EKC1-0904-120 | Contactor 4KW AC3 9A 4P 4NO Coil 120VAC |
| EKC1-0904-220 | Contactor 4KW AC3 9A 4P 4NO Coil 220VAC |
| EKC1-0904-230 | Contactor 4KW AC3 9A 4P 4NO Coil 230VAC |
| EKC1-0904-240 | Contactor 4KW AC3 9A 4P 4NO Coil 240VAC |
| EKC1-0904-380 | Contactor 4KW AC3 9A 4P 4NO Coil 380VAC |
| EKC1-0904-415 | Contactor 4KW AC3 9A 4P 4NO Coil 415VAC |
| EKC1-0908-24 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 24VAC |
| EKC1-0908-42 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 42VAC |
| EKC1-0908-48 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 48VAC |
| EKC1-0908-110 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 110VAC |
| EKC1-0908-120 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 120VAC |
| EKC1-0908-220 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 220VAC |
| EKC1-0908-230 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 230VAC |
| EKC1-0908-240 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 240VAC |
| EKC1-0908-380 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 380VAC |
| EKC1-0908-415 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 415VAC |
| EKC1-1204-24 | Contactor 5.5KW AC3 12A 4P 4NO Coil 24VAC |
| EKC1-1204-42 | Contactor 5.5KW AC3 12A 4P 4NO Coil 42VAC |
| EKC1-1204-48 | Contactor 5.5KW AC3 12A 4P 4NO Coil 48VAC |
| EKC1-1204-110 | Contactor 5.5KW AC3 12A 4P 4NO Coil 110VAC |
| EKC1-1204-120 | Contactor 5.5KW AC3 12A 4P 4NO Coil 120VAC |
| EKC1-1204-220 | Contactor 5.5KW AC3 12A 4P 4NO Coil 220VAC |
| EKC1-1204-230 | Contactor 5.5KW AC3 12A 4P 4NO Coil 230VAC |
| EKC1-1204-240 | Contactor 5.5KW AC3 12A 4P 4NO Coil 240VAC |
| EKC1-1204-380 | Contactor 5.5KW AC3 12A 4P 4NO Coil 380VAC |
| EKC1-1204-415 | Contactor 5.5KW AC3 12A 4P 4NO Coil 415VAC |
| EKC1-1208-24 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 24VAC |
| EKC1-1208-42 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 42VAC |
| EKC1-1208-48 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 48VAC |
| EKC1-1208-110 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 110VAC |
| EKC1-1208-120 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 120VAC |
| EKC1-1208-220 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 220VAC |
| EKC1-1208-230 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 230VAC |
| EKC1-1208-240 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 240VAC |
| EKC1-1208-380 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 380VAC |
| EKC1-1208-415 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 415VAC |
| EKC1-2504-24 | Contactor 11KW AC3 25A 4P 4NO Coil 24VAC |
| EKC1-2504-42 | Contactor 11KW AC3 25A 4P 4NO Coil 42VAC |
| EKC1-2504-48 | Contactor 11KW AC3 25A 4P 4NO Coil 48VAC |
| EKC1-2504-110 | Contactor 11KW AC3 25A 4P 4NO Coil 110VAC |
| EKC1-2504-120 | Contactor 11KW AC3 25A 4P 4NO Coil 120VAC |
| EKC1-2504-220 | Contactor 11KW AC3 25A 4P 4NO Coil 220VAC |
| EKC1-2504-230 | Contactor 11KW AC3 25A 4P 4NO Coil 230VAC |
| EKC1-2504-240 | Contactor 11KW AC3 25A 4P 4NO Coil 240VAC |
| EKC1-2504-380 | Contactor 11KW AC3 25A 4P 4NO Coil 380VAC |
| EKC1-2504-415 | Contactor 11KW AC3 25A 4P 4NO Coil 415VAC |
| EKC1-2508-24 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 24VAC |
| EKC1-2508-42 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 42VAC |
| EKC1-2508-48 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 48VAC |
| EKC1-2508-110 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 110VAC |
| EKC1-2508-120 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 120VAC |
| EKC1-2508-220 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 220VAC |
| EKC1-2508-230 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 230VAC |
| EKC1-2508-240 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 240VAC |
| EKC1-2508-380 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 380VAC |
| EKC1-2508-415 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 415VAC |
| EKC1-4004-24 | Contactor 18.5KW AC3 40A 4P 4NO Coil 24VAC |
| EKC1-4004-42 | Contactor 18.5KW AC3 40A 4P 4NO Coil 42VAC |
| EKC1-4004-48 | Contactor 18.5KW AC3 40A 4P 4NO Coil 48VAC |
| EKC1-4004-110 | Contactor 18.5KW AC3 40A 4P 4NO Coil 110VAC |
| EKC1-4004-120 | Contactor 18.5KW AC3 40A 4P 4NO Coil 120VAC |
| EKC1-4004-220 | Contactor 18.5KW AC3 40A 4P 4NO Coil 220VAC |
| EKC1-4004-230 | Contactor 18.5KW AC3 40A 4P 4NO Coil 230VAC |
| EKC1-4004-240 | Contactor 18.5KW AC3 40A 4P 4NO Coil 240VAC |
| EKC1-4004-380 | Contactor 18.5KW AC3 40A 4P 4NO Coil 380VAC |
| EKC1-4004-415 | Contactor 18.5KW AC3 40A 4P 4NO Coil 415VAC |
| EKC1-4008-24 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 24VAC |
| EKC1-4008-42 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 42VAC |
| EKC1-4008-48 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 48VAC |
| EKC1-4008-110 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 110VAC |
| EKC1-4008-120 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 120VAC |
| EKC1-4008-220 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 220VAC |
| EKC1-4008-230 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 230VAC |
| EKC1-4008-240 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 240VAC |
| EKC1-4008-380 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 380VAC |
| EKC1-4008-415 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 415VAC |
| EKC1-5004-24 | Contactor 22KW AC3 50A 4P 4NO Coil 24VAC |
| EKC1-5004-42 | Contactor 22KW AC3 50A 4P 4NO Coil 42VAC |
| EKC1-5004-48 | Contactor 22KW AC3 50A 4P 4NO Coil 48VAC |
| EKC1-5004-110 | Contactor 22KW AC3 50A 4P 4NO Coil 110VAC |
| EKC1-5004-120 | Contactor 22KW AC3 50A 4P 4NO Coil 120VAC |
| EKC1-5004-220 | Contactor 22KW AC3 50A 4P 4NO Coil 220VAC |
| EKC1-5004-230 | Contactor 22KW AC3 50A 4P 4NO Coil 230VAC |
| EKC1-5004-240 | Contactor 22KW AC3 50A 4P 4NO Coil 240VAC |
| EKC1-5004-380 | Contactor 22KW AC3 50A 4P 4NO Coil 380VAC |
| EKC1-5004-415 | Contactor 22KW AC3 50A 4P 4NO Coil 415VAC |
| EKC1-5008-24 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 24VAC |
| EKC1-5008-42 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 42VAC |
| EKC1-5008-48 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 48VAC |
| EKC1-5008-110 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 110VAC |
| EKC1-5008-120 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 120VAC |
| EKC1-5008-220 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 220VAC |
| EKC1-5008-230 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 230VAC |
| EKC1-5008-240 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 240VAC |
| EKC1-5008-380 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 380VAC |
| EKC1-5008-415 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 415VAC |
| EKC1-6504-24 | Contactor 30KW AC3 65A 4P 4NO Coil 24VAC |
| EKC1-6504-42 | Contactor 30KW AC3 65A 4P 4NO Coil 42VAC |
| EKC1-6504-48 | Contactor 30KW AC3 65A 4P 4NO Coil 48VAC |
| EKC1-6504-110 | Contactor 30KW AC3 65A 4P 4NO Coil 110VAC |
| EKC1-6504-120 | Contactor 30KW AC3 65A 4P 4NO Coil 120VAC |
| EKC1-6504-220 | Contactor 30KW AC3 65A 4P 4NO Coil 220VAC |
| EKC1-6504-230 | Contactor 30KW AC3 65A 4P 4NO Coil 230VAC |
| EKC1-6504-240 | Contactor 30KW AC3 65A 4P 4NO Coil 240VAC |
| EKC1-6504-380 | Contactor 30KW AC3 65A 4P 4NO Coil 380VAC |
| EKC1-6504-415 | Contactor 30KW AC3 65A 4P 4NO Coil 415VAC |
| EKC1-6508-24 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 24VAC |
| EKC1-6508-42 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 42VAC |
| EKC1-6508-48 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 48VAC |
| EKC1-6508-110 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 110VAC |
| EKC1-6508-120 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 120VAC |
| EKC1-6508-220 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 220VAC |
| EKC1-6508-230 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 230VAC |
| EKC1-6508-240 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 240VAC |
| EKC1-6508-380 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 380VAC |
| EKC1-6508-415 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 415VAC |
| EKC1-8004-24 | Contactor 37KW AC3 80A 4P 4NO Coil 24VAC |
| EKC1-8004-42 | Contactor 37KW AC3 80A 4P 4NO Coil 42VAC |
| EKC1-8004-48 | Contactor 37KW AC3 80A 4P 4NO Coil 48VAC |
| EKC1-8004-110 | Contactor 37KW AC3 80A 4P 4NO Coil 110VAC |
| EKC1-8004-120 | Contactor 37KW AC3 80A 4P 4NO Coil 120VAC |
| EKC1-8004-220 | Contactor 37KW AC3 80A 4P 4NO Coil 220VAC |
| EKC1-8004-230 | Contactor 37KW AC3 80A 4P 4NO Coil 230VAC |
| EKC1-8004-240 | Contactor 37KW AC3 80A 4P 4NO Coil 240VAC |
| EKC1-8004-380 | Contactor 37KW AC3 80A 4P 4NO Coil 380VAC |
| EKC1-8004-415 | Contactor 37KW AC3 80A 4P 4NO Coil 415VAC |
| EKC1-8008-24 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 24VAC |
| EKC1-8008-42 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 42VAC |
| EKC1-8008-48 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 48VAC |
| EKC1-8008-110 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 110VAC |
| EKC1-8008-120 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 120VAC |
| EKC1-8008-220 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 220VAC |
| EKC1-8008-230 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 230VAC |
| EKC1-8008-240 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 240VAC |
| EKC1-8008-380 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 380VAC |
| EKC1-8008-415 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 415VAC |
| EKC1-9504-24 | Contactor 45KW AC3 95A 4P 4NO Coil 24VAC |
| EKC1-9504-42 | Contactor 45KW AC3 95A 4P 4NO Coil 42VAC |
| EKC1-9504-48 | Contactor 45KW AC3 95A 4P 4NO Coil 48VAC |
| EKC1-9504-110 | Contactor 45KW AC3 95A 4P 4NO Coil 110VAC |
| EKC1-9504-120 | Contactor 45KW AC3 95A 4P 4NO Coil 120VAC |
| EKC1-9504-220 | Contactor 45KW AC3 95A 4P 4NO Coil 220VAC |
| EKC1-9504-230 | Contactor 45KW AC3 95A 4P 4NO Coil 230VAC |
| EKC1-9504-240 | Contactor 45KW AC3 95A 4P 4NO Coil 240VAC |
| EKC1-9504-380 | Contactor 45KW AC3 95A 4P 4NO Coil 380VAC |
| EKC1-9504-415 | Contactor 45KW AC3 95A 4P 4NO Coil 415VAC |
| EKC1-9508-24 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 24VAC |
| EKC1-9508-42 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 42VAC |
| EKC1-9508-48 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 48VAC |
| EKC1-9508-110 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 110VAC |
| EKC1-9508-120 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 120VAC |
| EKC1-9508-220 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 220VAC |
| EKC1-9508-230 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 230VAC |
| EKC1-9508-240 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 240VAC |
| EKC1-9508-380 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 380VAC |
| EKC1-9508-415 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 415VAC |
| DC Coil | |
| EKC1-0910Z-12 | Contactor 4KW AC3 9A 3P+1NO Coil 12VDC |
| EKC1-0910Z-24 | Contactor 4KW AC3 9A 3P+1NO Coil 24VDC |
| EKC1-0910Z-36 | Contactor 4KW AC3 9A 3P+1NO Coil 36VDC |
| EKC1-0910Z-48 | Contactor 4KW AC3 9A 3P+1NO Coil 48VDC |
| EKC1-0910Z-110 | Contactor 4KW AC3 9A 3P+1NO Coil 110VDC |
| EKC1-0910Z-120 | Contactor 4KW AC3 9A 3P+1NO Coil 120VDC |
| EKC1-0910Z-220 | Contactor 4KW AC3 9A 3P+1NO Coil 220VDC |
| EKC1-0901Z-12 | Contactor 4KW AC3 9A 3P+1NC Coil 12VDC |
| EKC1-0901Z-24 | Contactor 4KW AC3 9A 3P+1NC Coil 24VDC |
| EKC1-0901Z-36 | Contactor 4KW AC3 9A 3P+1NC Coil 36VDC |
| EKC1-0901Z-48 | Contactor 4KW AC3 9A 3P+1NC Coil 48VDC |
| EKC1-0901Z-110 | Contactor 4KW AC3 9A 3P+1NC Coil 110VDC |
| EKC1-0901Z-120 | Contactor 4KW AC3 9A 3P+1NC Coil 120VDC |
| EKC1-0901Z-220 | Contactor 4KW AC3 9A 3P+1NC Coil 220VDC |
| EKC1-1210Z-12 | Contactor 5.5KA AC3 12A 3P+1NO Coil 12VDC |
| EKC1-1210Z-24 | Contactor 5.5KA AC3 12A 3P+1NO Coil 24VDC |
| EKC1-1210Z-36 | Contactor 5.5KA AC3 12A 3P+1NO Coil 36VDC |
| EKC1-1210Z-48 | Contactor 5.5KA AC3 12A 3P+1NO Coil 48VDC |
| EKC1-1210Z-110 | Contactor 5.5KA AC3 12A 3P+1NO Coil 110VDC |
| EKC1-1210Z-120 | Contactor 5.5KA AC3 12A 3P+1NO Coil 120VDC |
| EKC1-1210Z-220 | Contactor 5.5KA AC3 12A 3P+1NO Coil 220VDC |
| EKC1-1201Z-12 | Contactor 5.5KA AC3 12A 3P+1NC Coil 12VDC |
| EKC1-1201Z-24 | Contactor 5.5KA AC3 12A 3P+1NC Coil 24VDC |
| EKC1-1201Z-36 | Contactor 5.5KA AC3 12A 3P+1NC Coil 36VDC |
| EKC1-1201Z-48 | Contactor 5.5KA AC3 12A 3P+1NC Coil 48VDC |
| EKC1-1201Z-110 | Contactor 5.5KA AC3 12A 3P+1NC Coil 110VDC |
| EKC1-1201Z-120 | Contactor 5.5KA AC3 12A 3P+1NC Coil 120VDC |
| EKC1-1201Z-220 | Contactor 5.5KA AC3 12A 3P+1NC Coil 220VDC |
| EKC1-1810Z-12 | Contactor 7.5KA AC3 18A 3P+1NO Coil 12VDC |
| EKC1-1810Z-24 | Contactor 7.5KA AC3 18A 3P+1NO Coil 24VDC |
| EKC1-1810Z-36 | Contactor 7.5KA AC3 18A 3P+1NO Coil 36VDC |
| EKC1-1810Z-48 | Contactor 7.5KA AC3 18A 3P+1NO Coil 48VDC |
| EKC1-1810Z-110 | Contactor 7.5KA AC3 18A 3P+1NO Coil 110VDC |
| EKC1-1810Z-120 | Contactor 7.5KA AC3 18A 3P+1NO Coil 120VDC |
| EKC1-1810Z-220 | Contactor 7.5KA AC3 18A 3P+1NO Coil 220VDC |
| EKC1-1801Z-12 | Contactor 7.5KA AC3 18A 3P+1NC Coil 12VDC |
| EKC1-1801Z-24 | Contactor 7.5KA AC3 18A 3P+1NC Coil 24VDC |
| EKC1-1801Z-36 | Contactor 7.5KA AC3 18A 3P+1NC Coil 36VDC |
| EKC1-1801Z-48 | Contactor 7.5KA AC3 18A 3P+1NC Coil 48VDC |
| EKC1-1801Z-110 | Contactor 7.5KA AC3 18A 3P+1NC Coil 110VDC |
| EKC1-1801Z-120 | Contactor 7.5KA AC3 18A 3P+1NC Coil 120VDC |
| EKC1-1801Z-220 | Contactor 7.5KW AC3 18A 3P+1NC Coil 220VDC |
| EKC1-2510Z-12 | Contactor 11KA AC3 25A 3P+1NO Coil 12VDC |
| EKC1-2510Z-24 | Contactor 11KA AC3 25A 3P+1NO Coil 24VDC |
| EKC1-2510Z-36 | Contactor 11KA AC3 25A 3P+1NO Coil 36VDC |
| EKC1-2510Z-48 | Contactor 11KA AC3 25A 3P+1NO Coil 48VDC |
| EKC1-2510Z-110 | Contactor 11KA AC3 25A 3P+1NO Coil 110VDC |
| EKC1-2510Z-120 | Contactor 11KA AC3 25A 3P+1NO Coil 120VDC |
| EKC1-2510Z-220 | Contactor 11KA AC3 25A 3P+1NO Coil 220VDC |
| EKC1-2501Z-12 | Contactor 11KA AC3 25A 3P+1NC Coil 12VDC |
| EKC1-2501Z-24 | Contactor 11KA AC3 25A 3P+1NC Coil 24VDC |
| EKC1-2501Z-36 | Contactor 11KA AC3 25A 3P+1NC Coil 36VDC |
| EKC1-2501Z-48 | Contactor 11KA AC3 25A 3P+1NC Coil 48VDC |
| EKC1-2501Z-110 | Contactor 11KA AC3 25A 3P+1NC Coil 110VDC |
| EKC1-2501Z-120 | Contactor 11KA AC3 25A 3P+1NC Coil 120VDC |
| EKC1-2501Z-220 | Contactor 11KA AC3 25A 3P+1NC Coil 220VDC |
| EKC1-3210Z-12 | Contactor 15KA AC3 32A 3P+1NO Coil 12VDC |
| EKC1-3210Z-24 | Contactor 15KA AC3 32A 3P+1NO Coil 24VDC |
| EKC1-3210Z-36 | Contactor 15KA AC3 32A 3P+1NO Coil 36VDC |
| EKC1-3210Z-48 | Contactor 15KA AC3 32A 3P+1NO Coil 48VDC |
| EKC1-3210Z-110 | Contactor 15KA AC3 32A 3P+1NO Coil 110VDC |
| EKC1-3210Z-120 | Contactor 15KA AC3 32A 3P+1NO Coil 120VDC |
| EKC1-3210Z-220 | Contactor 15KA AC3 32A 3P+1NO Coil 220VDC |
| EKC1-3201Z-12 | Contactor 15KA AC3 32A 3P+1NC Coil 12VDC |
| EKC1-3201Z-24 | Contactor 15KA AC3 32A 3P+1NC Coil 24VDC |
| EKC1-3201Z-36 | Contactor 15KA AC3 32A 3P+1NC Coil 36VDC |
| EKC1-3201Z-48 | Contactor 15KA AC3 32A 3P+1NC Coil 48VDC |
| EKC1-3201Z-110 | Contactor 15KA AC3 32A 3P+1NC Coil 110VDC |
| EKC1-3201Z-120 | Contactor 15KA AC3 32A 3P+1NC Coil 120VDC |
| EKC1-3201Z-220 | Contactor 15KA AC3 32A 3P+1NC Coil 220VDC |
| EKC1-4011Z-12 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 12VDC |
| EKC1-4011Z-24 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 24VDC |
| EKC1-4011Z-36 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 36VDC |
| EKC1-4011Z-48 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 48VDC |
| EKC1-4011Z-110 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 110VDC |
| EKC1-4011Z-120 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 120VDC |
| EKC1-4011Z-220 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 220VDC |
| EKC1-5011Z-12 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 12VDC |
| EKC1-5011Z-24 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VDC |
| EKC1-5011Z-36 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 36VDC |
| EKC1-5011Z-48 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VDC |
| EKC1-5011Z-110 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VDC |
| EKC1-5011Z-120 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VDC |
| EKC1-5011Z-220 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VDC |
| EKC1-6511Z-12 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 12VDC |
| EKC1-6511Z-24 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VDC |
| EKC1-6511Z-36 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 36VDC |
| EKC1-6511Z-48 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VDC |
| EKC1-6511Z-110 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VDC |
| EKC1-6511Z-120 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VDC |
| EKC1-6511Z-220 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VDC |
| EKC1-8011Z-12 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 12VDC |
| EKC1-8011Z-24 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VDC |
| EKC1-8011Z-36 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 36VDC |
| EKC1-8011Z-48 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VDC |
| EKC1-8011Z-110 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VDC |
| EKC1-8011Z-120 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VDC |
| EKC1-8011Z-220 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VDC |
| EKC1-9511Z-12 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 12VDC |
| EKC1-9511Z-24 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VDC |
| EKC1-9511Z-36 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 36VDC |
| EKC1-9511Z-48 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VDC |
| EKC1-9511Z-110 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VDC |
| EKC1-9511Z-120 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VDC |
| EKC1-9511Z-220 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VDC |
United States (English)
Russia (Pусский)
France (Français)
China (中文)
Spain (Español)
Germany (Deutsch)
Portugal (Português)
Slovakia (slovenský jazyk)
Australia (English)
New Zealand (English)
