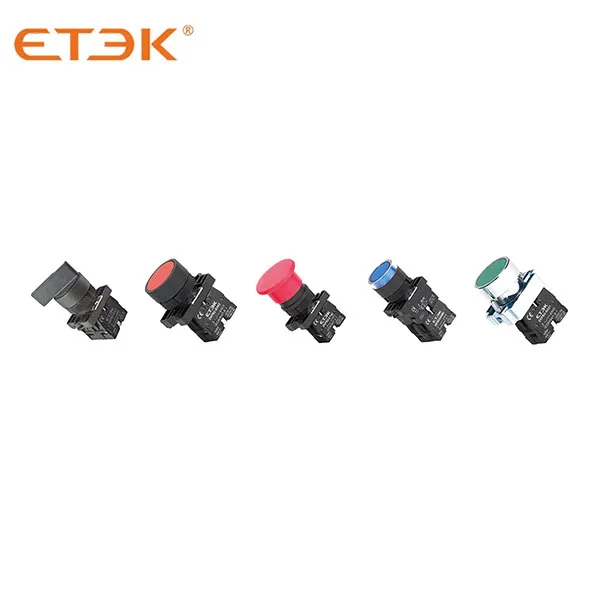

EKPB2 Plastic Type/Metal Type 22mm Push button Switch
EKPB2 Plastic Type/Metal Type 22mm Push button Switch
EKPB2 Plastic Type/Metal Type 22mm Push button Switch
EKPB2

Interruptor de botão de pressão de 22 mm, tipo plástico/tipo metal

Os botões de pressão EKPB2 são utilizados na indústria para o controle de circuitos de corrente alternada (CA) de 50 Hz ou 60 Hz, com tensão nominal de operação de 380 V ou inferior, e tensão de operação de corrente contínua (CC) de 220 V ou inferior, para o controle de circuitos magnéticos, de partida, contatores, relés e outros circuitos elétricos. Os botões indicadores também podem ser utilizados em locais com indicação luminosa ou de sinalização. São compatíveis com a norma IEC 60947-5-1.

Informe-se AGORA PDF
Etiquetas: Caixa elétrica para PC

Interruptor de botão de pressão de 22 mm, tipo plástico/tipo metal

Informe-se AGORA PDF
Visão geral do produto
Parâmetros técnicos
Descarregar ficheiros
Produtos recomendados
Consulta

Visão geral do produto

Descrição

Os botões de pressão EKPB2 são utilizados na indústria para o controle de circuitos de corrente alternada (CA) de 50 Hz ou 60 Hz, com tensão nominal de operação de 380 V ou inferior, e tensão de operação de corrente contínua (CC) de 220 V ou inferior, para o controle de circuitos magnéticos, de partida, contatores, relés e outros circuitos elétricos. Os botões indicadores também podem ser utilizados em locais com indicação luminosa ou de sinalização. São compatíveis com a norma IEC 60947-5-1.

Parâmetros técnicos

Technical Data

Temperatura de operação: -5℃~+40℃ Tensão suportável em frequência industrial: 2500 V, 1 min
Umidade de operação: 45%~85% Durabilidade elétrica: 50×104
Resistência de contato: ≤50mΩ Grau de proteção: IP40
Tensão de isolamento nominal UI 660V
Corrente térmica convencional Ith 10A
tensão nominal de operação UE 380V 220V 110V 48V 24V
Corrente operacional nominal AC-15 2,5A 4,5 6A 8A -
DC-13 - 0,3A 0,6A 1.3A 2,5
Tensão operacional nominal Direção Resistência Transformador
6V 12V 24V 48V 110V 220V 380V 220V 220V 380V
Lâmpada LED √ √ √ - - - - - √ √
Lâmpada de néon - - - - √ √ √ √ -
Lâmpada incandescente √ √ √ √ √ √ √ - √ √

Formulário de seleção de produtos

Reference No.
Plastic Type Metal Type Specification
EKPB2-BA11 EKPB2-EA11 Pushbutton Spring Return Type White N/O
EKPB2-BA21 EKPB2-EA21 Pushbutton Spring Return Type Black N/O
EKPB2-BA31 EKPB2-EA31 Pushbutton Spring Return Type Green N/O
EKPB2-BA51 EKPB2-EA51 Pushbutton Spring Return Type Yellow N/O
EKPB2-BA61 EKPB2-EA61 Pushbutton Spring Return Type Blue N/O
EKPB2-BA42 EKPB2-EA42 Pushbutton Spring Return Type Red N/O
EKPB2-BA25 EKPB2-EA25 Pushbutton Spring Return Type Black N/O+N/C
EKPB2-BA35 EKPB2-EA35 Pushbutton Spring Return Type Green N/O+N/C
EKPB2-BA45 EKPB2-EA45 Pushbutton Spring Return Type Red N/O+N/C
EKPB2-BP11 EKPB2-EP11 Pushbutton Spring Return IP65 type White N/O
EKPB2-BP21 EKPB2-EP21 Pushbutton Spring Return IP65 type Black N/O
EKPB2-BP31 EKPB2-EP31 Pushbutton Spring Return IP65 type Green N/O
EKPB2-BP51 EKPB2-EP51 Pushbutton Spring Return IP65 type Yellow N/O
EKPB2-BP61 EKPB2-EP61 Pushbutton Spring Return IP65 type Blue N/O
EKPB2-BP42 EKPB2-EP42 Pushbutton Spring Return IP65 type Red N/C
EKPB2-BP25 EKPB2-EP25 Pushbutton Spring Return IP65 type Black N/O+N/C
EKPB2-BP35 EKPB2-EP35 Pushbutton Spring Return IP65 type Green N/O+N/C
EKPB2-BP45 EKPB2-EP45 Pushbutton Spring Return IP65 type Red N/O+N/C
EKPB2-BL11 EKPB2-EL11 Pushbutton Protruding type White N/O
EKPB2-BL21 EKPB2-EL21 Pushbutton Protruding type Black N/O
EKPB2-BL31 EKPB2-EL31 Pushbutton Protruding type Green N/O
EKPB2-BL51 EKPB2-EL51 Pushbutton Protruding type Yellow N/O
EKPB2-BL61 EKPB2-EL61 Pushbutton Protruding type Blue N/O
EKPB2-BL42 EKPB2-EL42 Pushbutton Protruding type Red N/C
EKPB2-BL25 EKPB2-EL25 Pushbutton Protruding type Black N/O+N/C
EKPB2-BL35 EKPB2-EL35 Pushbutton Protruding type Green N/O+N/C
EKPB2-BL45 EKPB2-EL45 Pushbutton Protruding type Red N/O+N/C
EKPB2-BD21 EKPB2-ED21 Pushbutton Rotary type Black N/O
EKPB2-BD25 EKPB2-ED25 Pushbutton Rotary type Black N/O+N/C
EKPB2-BD41 EKPB2-ED41 Pushbutton Rotary type Black N/O
EKPB2-BD45 EKPB2-ED45 Pushbutton Rotary type Black N/O+N/C
EKPB2-BD33 EKPB2-ED33 Pushbutton Rotary type Black 2N/O
EKPB2-BD53 EKPB2-ED53 Pushbutton Rotary type Black 2N/O
EKPB2-BJ21 EKPB2-EJ21 Pushbutton Rotary Long handle type Black N/O
EKPB2-BJ25 EKPB2-EJ25 Pushbutton Rotary Long handle type Black N/O+N/C
EKPB2-BJ41 EKPB2-EJ41 Pushbutton Rotary Long handle type Black N/O
EKPB2-BJ45 EKPB2-EJ45 Pushbutton Rotary Long handle type Black N/O+NC
EKPB2-BJ33 EKPB2-EJ33 Pushbutton Rotary Long handle type Black 2N/O
EKPB2-BJ53 EKPB2-EJ53 Pushbutton Rotary Long handle type Black 2N/O
EKPB2-BG21 EKPB2-EG21 Pushbutton Rotary with Key type Black N/O
EKPB2-BG25 EKPB2-EG25 Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG41 EKPB2-EG41 Pushbutton Rotary with Key type Black N/O
EKPB2-BG45 EKPB2-EG45 Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG61 EKPB2-EG61 Pushbutton Rotary with Key type Black N/O
EKPB2-BG65 EKPB2-EG65 Pushbutton Rotary with Key type Black N/O+N/C
EKPB2-BG03 EKPB2-EG03 Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG33 EKPB2-EG33 Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG53 EKPB2-EG53 Pushbutton Rotary with Key type Black 2N/O
EKPB2-BG73 EKPB2-EG73 Pushbutton Rotary with Key type Black 2N/O
EKPB2-BL8325 EKPB2-EL8325 Pushbutton Double Head type Green/Red 1N/O+1NC
EKPB2-BL8425 EKPB2-EL8425 Pushbutton Double Head type Green/Red 1N/O+1NC
EKPB2-BW8365 EKPB2-EW8365 Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8465 EKPB2-EW8465 Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8375 EKPB2-EW8375 Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BW8475 EKPB2-EW8475 Pushbutton Double Head type Green/Yellow/Red 1N/O+1NC
EKPB2-BC21 EKPB2-EC21 Pushbutton Mushroom type Black N/O
EKPB2-BC31 EKPB2-EC31 Pushbutton Mushroom type Green N/O
EKPB2-BC42 EKPB2-EC42 Pushbutton Mushroom type Red N/O
EKPB2-BC51 EKPB2-EC51 Pushbutton Mushroom type Yellow N/O
EKPB2-BC21 EKPB2-ER21 Pushbutton Mushroom type Black N/O
EKPB2-BC31 EKPB2-ER31 Pushbutton Mushroom type Green N/O
EKPB2-BC42 EKPB2-ER42 Pushbutton Mushroom type Red N/C
EKPB2-BC51 EKPB2-ER51 Pushbutton Mushroom type Yellow N/C
EKPB2-BS442 EKPB2-ES442 Pushbutton Mushroom type Red N/C
EKPB2-BS542 EKPB2-ES542 Pushbutton Mushroom type Red N/C
EKPB2-BS642 EKPB2-ES642 Pushbutton Mushroom type Red N/C
EKPB2-BT42   Pushbutton Mushroom type Red N/C
EKPB2-BT845   Pushbutton Mushroom type Red N/O+N/C
EKPB2-BS142 EKPB2-ES142 Pushbutton Mushroom with Key type Red N/C
EKPB2-BS8445 EKPB2-ES8445 Pushbutton Mushroom with Key type Red N/O+N/C
EKPB2-BV61 EKPB2-EV61 Pushbutton Indicator Light Type White Directness
EKPB2-BV63 EKPB2-EV63 Pushbutton Indicator Light Type Green Directness
EKPB2-BV64 EKPB2-EV64 Pushbutton Indicator Light Type Red Directness
EKPB2-BV65 EKPB2-EV65 Pushbutton Indicator Light Type Yellow Directness
EKPB2-BV66 EKPB2-EV66 Pushbutton Indicator Light Type Blue Directness
EKPB2-BV71 EKPB2-EV71 Pushbutton Indicator Light Type White Resistance
EKPB2-BV73 EKPB2-EV73 Pushbutton Indicator Light Type Green Resistance
EKPB2-BV74 EKPB2-EV74 Pushbutton Indicator Light Type Red Resistance
EKPB2-BV75 EKPB2-EV75 Pushbutton Indicator Light Type Yellow Resistance
EKPB2-BV76 EKPB2-EV76 Pushbutton Indicator Light Type Blue Resistance
EKPB2-BW3161 EKPB2-EW3161 Pushbutton With Indicator type White N/O
EKPB2-BW3361 EKPB2-EW3361 Pushbutton With Indicator type Green N/O
EKPB2-BW3462 EKPB2-EW3462 Pushbutton With Indicator type Red N/C
EKPB2-BW3561 EKPB2-EW3561 Pushbutton With Indicator type Yellow N/O
EKPB2-BW3661 EKPB2-EW3661 Pushbutton With Indicator type Blue N/O
EKPB2-BW3365 EKPB2-EW3365 Pushbutton With Indicator type Green N/O+N/C
EKPB2-BW3465 EKPB2-EW3465 Pushbutton With Indicator type Red N/O+N/C
EKPB2-BK2365 EKPB2-EK2365 Pushbutton Rotary with indicator type Green N/O+N/C
EKPB2-BK2465 EKPB2-EK2465 Pushbutton Rotary with indicator type Red N/O+N/C
EKPB2-BK3365 EKPB2-EK3365 Pushbutton Rotary with indicator type Green N/O+N/C
EKPB2-BK3465 EKPB2-EK3465 Pushbutton Rotary with indicator type Red N/O+N/C
EKPB2-BZ101 EKPB2-EZ101 Bracket with Contact N/O
EKPB2-BZ103 EKPB2-EZ103 Bracket with Contact N/O+N/C
EKPB2-BZ105 EKPB2-EZ105 Bracket with Contact N/O+N/C
EKPB2-BZ102 EKPB2-EZ102 Bracket with Contact N/C
EKPB2-BZ104 EKPB2-EZ104 Bracket with Contact N/C+N/C
EKPB2-BV6 EKPB2-EV6 Bottom Base seat
EKPB2-BW06 EKPB2-EW06 Bottom Base seat
EKPB2-BZ009 EKPB2-EZ009 Bracket only
EKPB2-BE102  EKPB2-ET42 Contact Block N/C
EKPB2-BE101  EKPB2-ET845 Contact Block N/O
