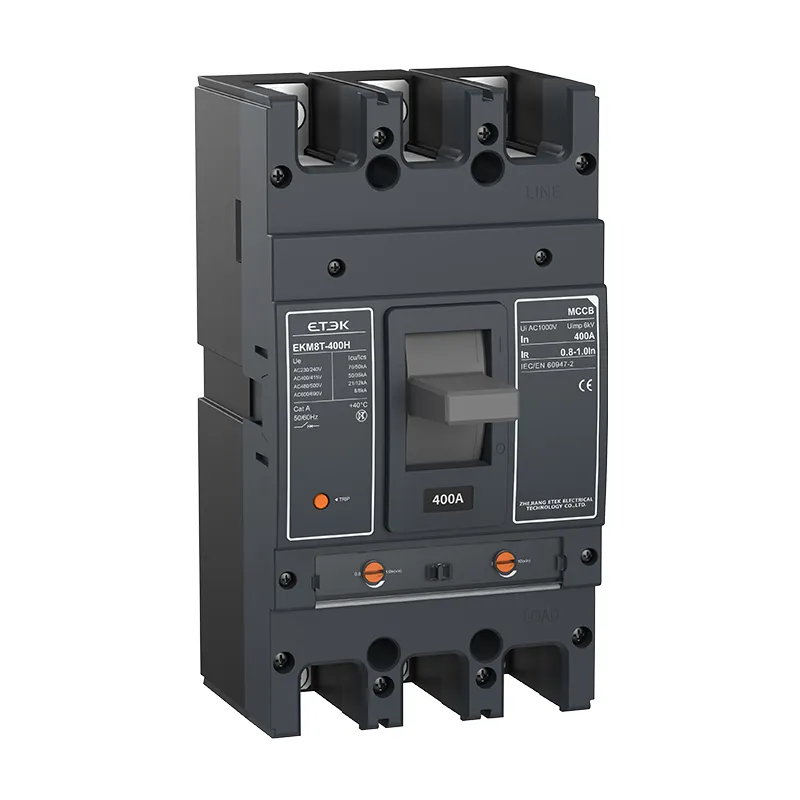

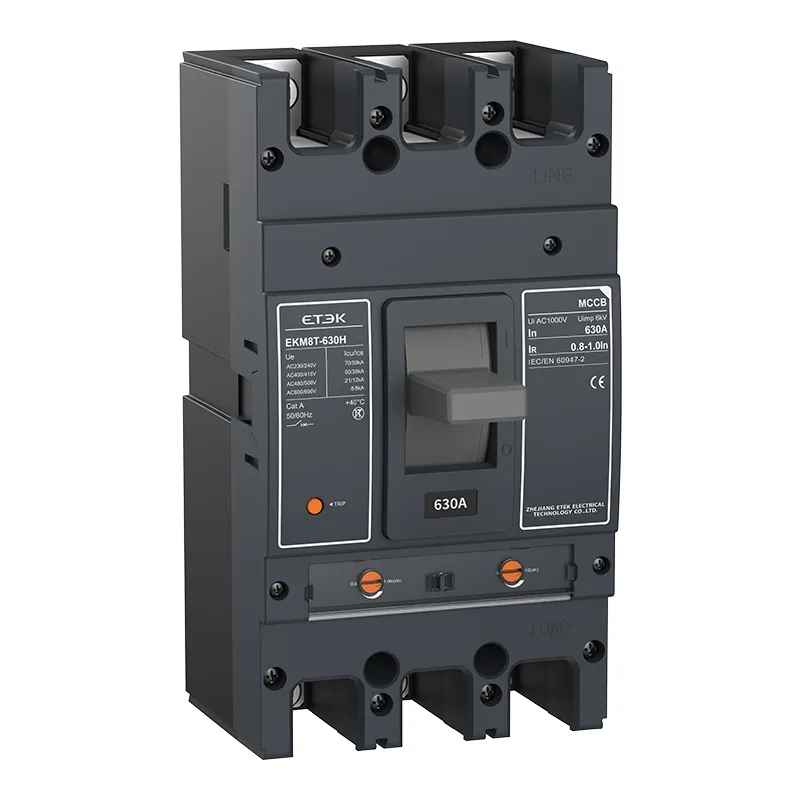

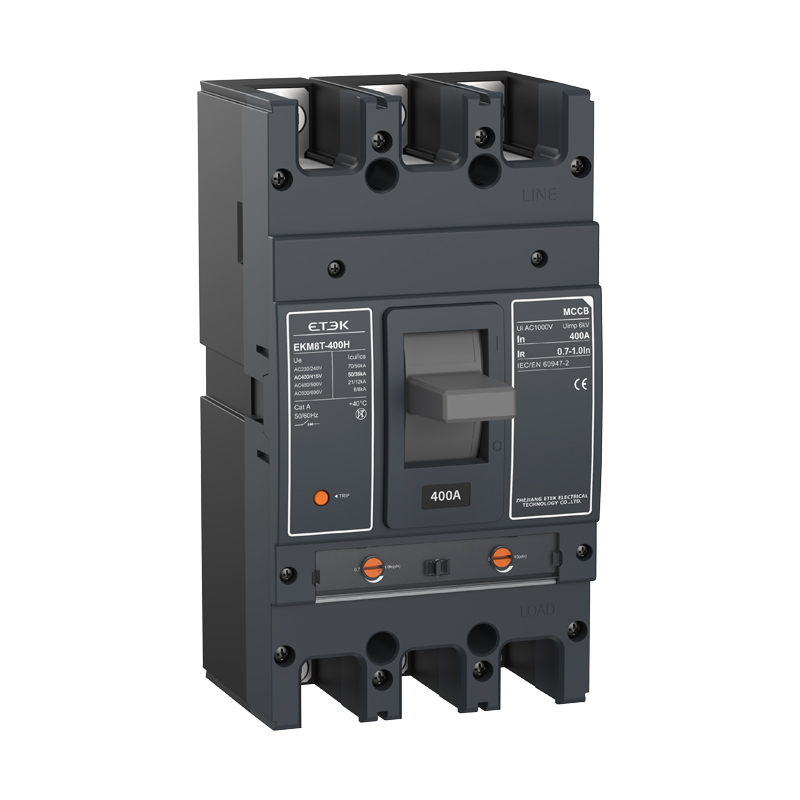

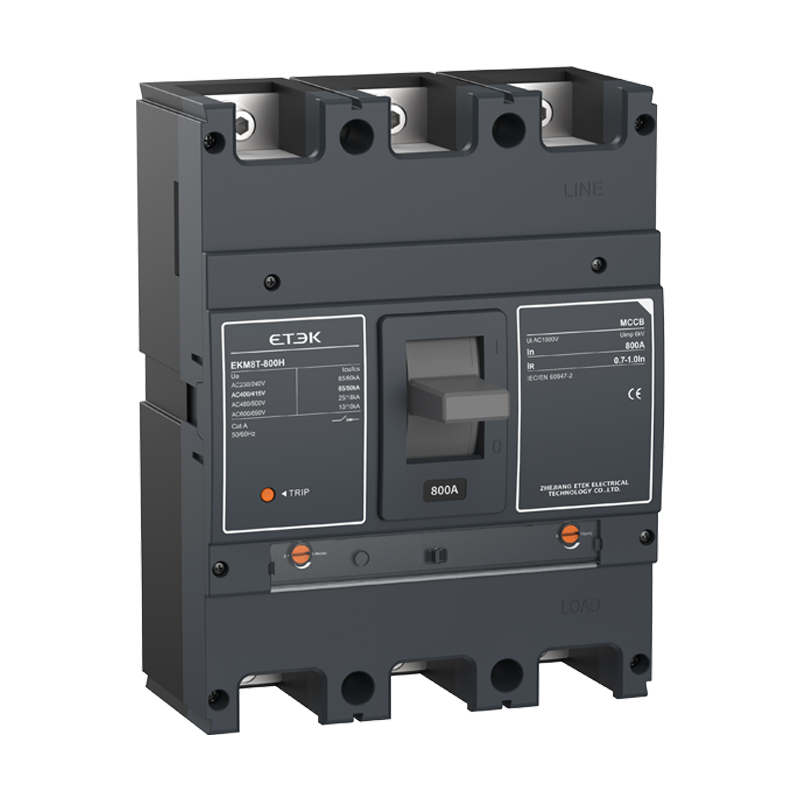

A linha ajustável EKM8T de disjuntores de caixa moldada é projetada e fabricada de acordo com os padrões de classe mundial. Fornece proteção contra sobrecarga e curto-circuito para todas as aplicações. Os elementos térmicos, ajustáveis em uma ampla faixa, tornam esses MCCBs ideais para qualquer aplicação de distribuição.
20A a 1250A em 6 tamanhos de carcaça em três polos e quatro polos com execução chaveada.
Dimensões compactas
Configuração térmica ajustável (70-100%) In.
Empurre para a disposição do botão de disparo.
Contatos principais e de arco separados
Ampla gama de acessórios.
EKM8 | T | 160 | H | |||
↓ | ↓ | ↓ | ↓ | |||
Código do produto | Tipo ajustável | Código do tamanho do quadro atual | Capacidade de interrupção UTI/ICS (kA) | |||
Disjuntor em caixa moldada (MCCB) | T: termomagnético ajustável T/A: único ajustável (isto é, termicamente ajustável \Magnético fixo) | 160, 250, 400, 630, 800 Observação: 160 é atualizado tipo de quadro 100 225 é um tipo atualizado de quadro 250 630 é um tipo atualizado de quadro 400 | S | H | ||
160 | 25/18 | 35/25 | ||||
250 | 25/18 | 35/25 | ||||
400 | 35/25 | 50/35 | ||||
630 | 35/25 | 50/35 | ||||
1250 | 50/35 | 65/50 | ||||
H-alto desempenho 70KA |
Z | 3 | 300 | 160 |
↓ | ↓ | ↓ | ↓ |
Código do modo de operação | número do pólo | Código do tipo de liberação e acessório interno | Corrente nominal (A) |
P: operação elétrica Z: alça rotativa W: operação direta ①Operação elétrica DC1, DC2,DC3 | 3: 3 pólos 4: 4 polos | o primeiro dígito representa o tipo de liberação 2: Possui liberação instantânea apenas 3: liberação complexa Observação: Dois dígitos posteriores são o código de acessórios (ver tabela de acessórios 1) | 160 20-25,25-32,32-40,40-50,50-63, 63-80,80-100,100-125,125-160 250 100-125,125-160,160-200,200-250 400 200-250.250-320.320-400 630 400-500.500-630 1250 630-800,800-1000,1000-1250 |
2 | A |
↓ | ↓ |
Aplicativo | Código do produto quadripolar |
1: distribuição de energia 2: proteção do motor | A: N-pole sem proteção, não pode fechar ou abrir B: N-pole sem proteção, pode fechar e abrir C: N-pole com proteção, pode fechar e abrir D: N-pólo com proteção, não pode fechar ou abrir |
Q1 | D1 | Q | 2 | |||
↓ | ↓ | ↓ | ↓ | |||
Tensão do acessório | Tensão de operação elétrica | Métodos de instalação | Instalar a fiação bordo ou não | |||
Q1: AC220V | F1: AC220V | J1: AC125V | D1: AC220V | D5: AC230V | Q: Placa frontal H: Back-board C: Tipo de plug-in | 1: Não 2: Sim |
Q2: AC240V | F2: AC380V | J2: AC250V | D2: AC230V | D6: AC110V | ||
Q3: AC380V | F3: DC110V | J3: DC125V | D3: AC380V | D7: DC220 | ||
Q4: AC415V | F4: DC24V | J4: DC24V | D4: AC400V | D8: DC110 | ||
D9: AC110-240V | ||||||
D10: DC100-220V | ||||||
Observação: Tensões adaptáveis para dois elétricos operações. Por favor, consulte o Introdução de acessório externo |
Corrente de quadro (A) | 160 | 250 | |||||
Modelo | EKM8T-160S | EKM8T-160H | EKM8T-250S | EKM8T-250H | |||
número do pólo | 3, 4 | 3, 4 | |||||
Corrente nominal (A) | 20-25, 25-32, 32-40, 40-50, 50-63, 63-80,80-100, 100-125A, 125-160A | 100-125, 125-160, 160-200, 200-250A | |||||
Tensão nominal (V) | AC400V | AC400V | |||||
Tensão de isolamento nominal (V) | AC1000V | AC1000V | |||||
Capacidade de interrupção de curto-circuito (KA)Icu/Ics | AC400V | 25/18 | 35/25 | 25/18 | 35/25 | ||
Número do ciclo operacional | Vida elétrica | 3000 | 3000 | ||||
Vida mecânica | 7000 | 7000 | |||||
Contorno dim(mm) abc-ca | |||||||
3P | 90-155-68-90 | 90-155-88-115 | 105-165-68-92 | 105-165-88-115 | |||
4P | 120-155-68-90 | 120-155-88-115 | 140-165-68-92 | 140-165-88-115 | |||
Peso (kg) | 3P | 1 | 1.1 | 1,5 | 1.7 | ||
4P | 1.1 | 1.7 | 1.9 | 2.1 | |||
Dispositivo operacional elétrico (MD) | ● | ||||||
Alavanca de operação de condução externa | ● | ||||||
liberação automática | Tipo eletromagnético térmico |
Corrente de quadro (A) | 400 | 630 | 1250 | ||||
Modelo | EKM8T-400S | EKM8T-400H | EKM8T-630S | EKM8T-630H | EKM8T-1250S | EKM8T-1250H | |
número do pólo | 3, 4 | 3, 4 | 3, 4 | ||||
Corrente nominal (A) | 200-250, 250-320,320-400 | 400-500, 500-630 | 630-800,800-1250 | ||||
Tensão nominal (V) | AC400V | AC400V | AC400V | ||||
Tensão de isolamento nominal (V) | AC1000V | AC1000V | AC1000V | ||||
Capacidade de interrupção de curto-circuito (KA)Icu/Ics | AC400V | 35/25 | 50/35 | 35/25 | 50/35 | 50/35 | 65/50 |
Número do ciclo operacional | Vida elétrica | 2000 | 2000 | 1500 | |||
Vida mecânica | 4000 | 4000 | 4000 | ||||
Contorno dim (mm) abc-ca | |||||||
3P | 140-257-103-155 | 140-257-103-155 | 210-275-103-155 | ||||
4P | 185-257-103-155 | 185-257-103-155 | 280-275-103-155 | ||||
Peso (kg) | 3P | 5.5 | 5.7 | 9.5 | |||
4P | 7 | 7.5 | 12.5 | ||||
operação elétrica dispositivo (MD) | ● | ||||||
condução externa alça de operação | ● | ||||||
liberação automática | Tipo eletromagnético térmico |
Número de referência | Especificação |
EKM8T-125S-3-025 | Tipo TA termomagnético MCCB 3P 20-25A ICU/ICS:18/15KA |
EKM8T-125S-3-032 | Tipo TA termomagnético MCCB 3P 25.6-32A ICU/ICS:18/15KA |
EKM8T-125S-3-040 | Tipo TA termomagnético MCCB 3P 32-40A ICU/ICS:18/15KA |
EKM8T-125S-3-050 | Tipo TA termomagnético MCCB 3P 40-50A ICU/ICS:18/15KA |
EKM8T-125S-3-063 | Tipo TA termomagnético MCCB 3P 50.4-63A ICU/ICS:18/15KA |
EKM8T-125S-3-080 | Tipo TA termomagnético MCCB 3P 64-80A ICU/ICS:18/15KA |
EKM8T-125S-3-100 | Tipo TA termomagnético MCCB 3P 80-100A ICU/ICS:18/15KA |
EKM8T-125S-3-125 | Tipo TA termomagnético MCCB 3P 100-125A ICU/ICS:18/15KA |
EKM8T-125S-4-025 | Tipo TA termomagnético MCCB 4P 20-25A ICU/ICS:18/15KA |
EKM8T-125S-4-032 | Tipo TA termomagnético MCCB 4P 25.6-32A ICU/ICS:18/15KA |
EKM8T-125S-4-040 | Tipo TA termomagnético MCCB 4P 32-40A ICU/ICS:18/15KA |
EKM8T-125S-4-050 | Tipo TA termomagnético MCCB 4P 40-50A ICU/ICS:18/15KA |
EKM8T-125S-4-063 | Tipo TA termomagnético MCCB 4P 50.4-63A ICU/ICS:18/15KA |
EKM8T-125S-4-080 | Tipo TA termomagnético MCCB 4P 64-80A ICU/ICS:18/15KA |
EKM8T-125S-4-100 | Tipo TA termomagnético MCCB 4P 80-100A ICU/ICS:18/15KA |
EKM8T-125S-4-125 | Tipo TA termomagnético MCCB 4P 100-125A ICU/ICS:18/15KA |
EKM8T-160S-3-025 | TMA termomagnético tipo MCCB 3P 20-25A ICU/ICS:25/18KA |
EKM8T-160S-3-032 | Termomagnético TMA tipo MCCB 3P 25.6-32A ICU/ICS:25/18KA |
EKM8T-160S-3-040 | TMA termomagnético tipo MCCB 3P 32-40A ICU/ICS:25/18KA |
EKM8T-160S-3-050 | TMA termomagnético tipo MCCB 3P 40-50A ICU/ICS:25/18KA |
EKM8T-160S-3-063 | Termomagnético TMA tipo MCCB 3P 50.4-63A ICU/ICS:25/18KA |
EKM8T-160S-3-080 | TMA termomagnético tipo MCCB 3P 64-80A ICU/ICS:25/18KA |
EKM8T-160S-3-100 | TMA termomagnético tipo MCCB 3P 80-100A ICU/ICS:25/18KA |
EKM8T-160S-3-125 | TMA termomagnético tipo MCCB 3P 100-125A ICU/ICS:25/18KA |
EKM8T-160S-3-160 | TMA termomagnético tipo MCCB 3P 128-160A ICU/ICS:25/18KA |
EKM8T-160S-4-025 | TMA termomagnético tipo MCCB 4P 20-25A ICU/ICS:25/18KA |
EKM8T-160S-4-032 | TMA termomagnético tipo MCCB 4P 25.6-32A ICU/ICS:25/18KA |
EKM8T-160S-4-040 | TMA termomagnético tipo MCCB 4P 32-40A ICU/ICS:25/18KA |
EKM8T-160S-4-050 | TMA termomagnético tipo MCCB 4P 40-50A ICU/ICS:25/18KA |
EKM8T-160S-4-063 | Termomagnético TMA tipo MCCB 4P 50.4-63A ICU/ICS:25/18KA |
EKM8T-160S-4-080 | TMA termomagnético tipo MCCB 4P 64-80A ICU/ICS:25/18KA |
EKM8T-160S-4-100 | TMA termomagnético tipo MCCB 4P 80-100A ICU/ICS:25/18KA |
EKM8T-160S-4-125 | TMA termomagnético tipo MCCB 4P 100-125A ICU/ICS:25/18KA |
EKM8T-160S-4-160 | TMA termomagnético tipo MCCB 4P 128-160A ICU/ICS:25/18KA |
EKM8T-160H-3-025 | TMA termomagnético tipo MCCB 3P 20-25A ICU/ICS:35/25KA |
EKM8T-160H-3-032 | TMA termomagnético tipo MCCB 3P 25.6-32A ICU/ICS:35/25KA |
EKM8T-160H-3-040 | TMA termomagnético tipo MCCB 3P 32-40A ICU/ICS:35/25KA |
EKM8T-160H-3-050 | TMA termomagnético tipo MCCB 3P 40-50A ICU/ICS:35/25KA |
EKM8T-160H-3-063 | Termomagnético TMA tipo MCCB 3P 50.4-63A ICU/ICS:35/25KA |
EKM8T-160H-3-080 | TMA termomagnético tipo MCCB 3P 64-80A ICU/ICS:35/25KA |
EKM8T-160H-3-100 | TMA termomagnético tipo MCCB 3P 80-100A ICU/ICS:35/25KA |
EKM8T-160H-3-125 | TMA termomagnético tipo MCCB 3P 100-125A ICU/ICS:35/25KA |
EKM8T-160H-3-160 | TMA termomagnético tipo MCCB 3P 128-160A ICU/ICS:35/25KA |
EKM8T-160H-4-025 | TMA termomagnético tipo MCCB 4P 20-25A ICU/ICS:35/25KA |
EKM8T-160H-4-032 | TMA termomagnético tipo MCCB 4P 25.6-32A ICU/ICS:35/25KA |
EKM8T-160H-4-040 | TMA termomagnético tipo MCCB 4P 32-40A ICU/ICS:35/25KA |
EKM8T-160H-4-050 | TMA termomagnético tipo MCCB 4P 40-50A ICU/ICS:35/25KA |
EKM8T-160H-4-063 | Termomagnético TMA tipo MCCB 4P 50.4-63A ICU/ICS:35/25KA |
EKM8T-160H-4-080 | TMA termomagnético tipo MCCB 4P 64-80A ICU/ICS:35/25KA |
EKM8T-160H-4-100 | TMA termomagnético tipo MCCB 4P 80-100A ICU/ICS:35/25KA |
EKM8T-160H-4-125 | TMA termomagnético tipo MCCB 4P 100-125A ICU/ICS:35/25KA |
EKM8T-160H-4-160 | TMA termomagnético tipo MCCB 4P 128-160A ICU/ICS:35/25KA |
EKM8T-250S-3-125 | TMA termomagnético tipo MCCB 3P 100-125A ICU/ICS:25/18KA |
EKM8T-250S-3-160 | TMA termomagnético tipo MCCB 3P 128-160A ICU/ICS:25/18KA |
EKM8T-250S-3-200 | TMA termomagnético tipo MCCB 3P 160-200A ICU/ICS:25/18KA |
EKM8T-250S-3-250 | TMA termomagnético tipo MCCB 3P 200-250A ICU/ICS:25/18KA |
EKM8T-250S-4-125 | TMA termomagnético tipo MCCB 4P 100-125A ICU/ICS:25/18KA |
EKM8T-250S-4-160 | TMA termomagnético tipo MCCB 4P 128-160A ICU/ICS:25/18KA |
EKM8T-250S-4-200 | TMA termomagnético tipo MCCB 4P 160-200A ICU/ICS:25/18KA |
EKM8T-250S-4-250 | TMA termomagnético tipo MCCB 4P 200-250A ICU/ICS:25/18KA |
EKM8T-250H-3-125 | TMA termomagnético tipo MCCB 3P 100-125A ICU/ICS:35/25KA |
EKM8T-250H-3-160 | TMA termomagnético tipo MCCB 3P 128-160A ICU/ICS:35/25KA |
EKM8T-250H-3-200 | TMA termomagnético tipo MCCB 3P 160-200A ICU/ICS:35/25KA |
EKM8T-250H-3-250 | TMA termomagnético tipo MCCB 3P 200-250A ICU/ICS:35/25KA |
EKM8T-250H-4-125 | TMA termomagnético tipo MCCB 4P 100-125A ICU/ICS:35/25KA |
EKM8T-250H-4-160 | TMA termomagnético tipo MCCB 4P 128-160A ICU/ICS:35/25KA |
EKM8T-250H-4-200 | TMA termomagnético tipo MCCB 4P 160-200A ICU/ICS:35/25KA |
EKM8T-250H-4-250 | TMA termomagnético tipo MCCB 4P 200-250A ICU/ICS:35/25KA |
EKM8T-400H-3-250 | TMA termomagnético tipo MCCB 3P 200-250A ICU/ICS:50/35KA |
EKM8T-400H-3-320 | TMA termomagnético tipo MCCB 3P 256-320A ICU/ICS:50/35KA |
EKM8T-400H-3-400 | TMA termomagnético tipo MCCB 3P 320-400A ICU/ICS:50/35KA |
EKM8T-400H-4-250 | TMA termomagnético tipo MCCB 4P 200-250A ICU/ICS:50/35KA |
EKM8T-400H-4-320 | TMA termomagnético tipo MCCB 4P 256-320A ICU/ICS:50/35KA |
EKM8T-400H-4-400 | TMA termomagnético tipo MCCB 4P 320-400A ICU/ICS:50/35KA |
EKM8T-630H-3-500 | TMA termomagnético tipo MCCB 3P 400-500A ICU/ICS:50/35KA |
EKM8T-630H-3-630 | TMA termomagnético tipo MCCB 3P 504-630A ICU/ICS:50/35KA |
EKM8T-630H-4-500 | TMA termomagnético tipo MCCB 4P 400-500A ICU/ICS:50/35KA |
EKM8T-630H-4-630 | Termomagnético TMA tipo MCCB 4P 504-630A ICU/ICS:50/35KA |
EKM8T-800H-3-630 | TMA termomagnético tipo MCCB 3P 504-630A ICU/ICS:65/50KA |
EKM8T-800H-3-800 | TMA termomagnético tipo MCCB 3P 640-800A ICU/ICS:65/50KA |
EKM8T-800H-4-630 | TMA termomagnético tipo MCCB 4P 504-630A ICU/ICS:65/50KA |
EKM8T-800H-4-800 | TMA termomagnético tipo MCCB 4P 640-800A ICU/ICS:65/50KA |
